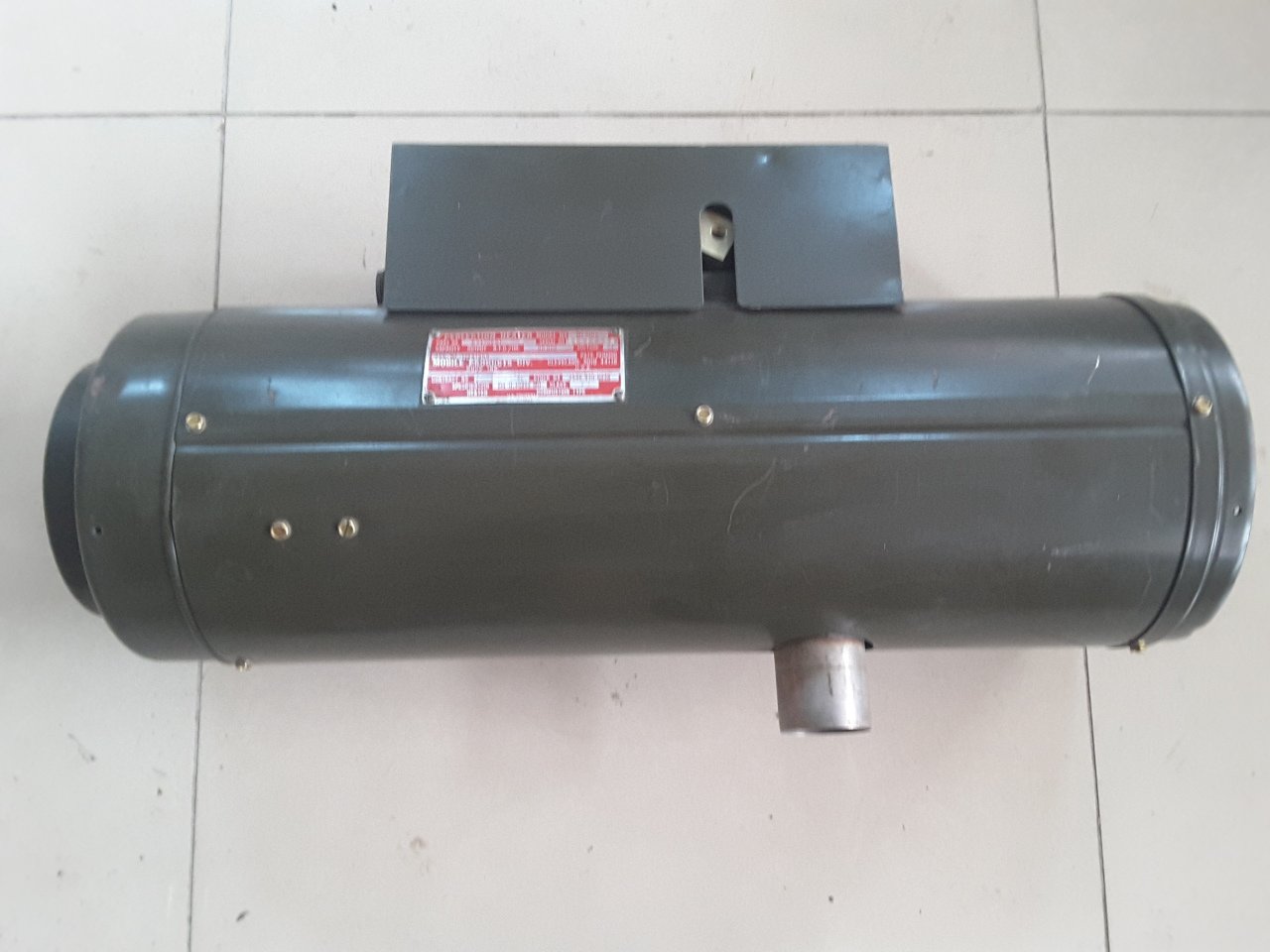

HEATER ASSY.

VEHICLE/SYSTEM
NSN
2540-01-226-4949
PART NUMBER
MF510-A
UNIT PRICE
0,00 USD
0,00 USD
Paylaş :
ALL PARTS AVAILABLE SEPARATELY;

5340-00-994-0985 C52861G1-1 COVER,ACCESS
7690-00-458-0058 C54182G1 PLATE
5935-00-498-8653 B52809G1 CONNECTOR
B52809-G1 CONNECTOR
52809G1 CONNECTOR
52809-G1 CONNECTOR
B50073-G3 WIRE
B50555-G8-4 WIRE
B50073-G8 WIRE
B50526-G3-2 WIRE
B50526-G3-3 WIRE
A4843 INSULATOR
B52808-G2 CONNECTOR
B52808G2 CONNECTOR
52808-G2 CONNECTOR
52808G2 CONNECTOR
5940-01-164-3647 M22012-56 TERMINAL BOARD
5930-00-475-5537 8376101 SWITCH,SENSITIVE
B51726-G1 SWITCH,SENSITIVE
B51726G1 SWITCH,SENSITIVE
B51726-G2 SWITCH,SENSITIVE
B51726G2 SWITCH,SENSITIVE
51726G2 SWITCH,SENSITIVE
51726-G2 SWITCH,SENSITIVE
51726G1 SWITCH,SENSITIVE
51726-G1 SWITCH,SENSITIVE
5930-01-270-3941 B51726-G2 SWITCH,SENSITIVE
5930-01-038-5698 A51723-G1 SWITCH,THERMOSTATIC
A51723G1 SWITCH,THERMOSTATIC
3040-01-145-4339 A51695-G1 LEVER
A51695G1 LEVER
5310-00-239-8016 A51701G1 NUT
5360-01-139-4577 A51696-G1 SPRING
5315-01-026-4692 10947053 ROD
50177G1 ROD
50177-G1 ROD
A50177-G1 ROD
A50177G1 ROD
5930-01-027-1475 10957054 ROD
9390-01-395-9065 10947054 ROD
A50178-G1 ROD
A50178G1 ROD
50178-G1 ROD
50178G1 ROD
2590-00-925-8050 10947055 PARTS KIT,SWITCH
14439 PARTS KIT,SWITCH
B51725-G1 FRAME ASSY.
B51725G1 FRAME ASSY.
51725-G1 FRAME ASSY.
51725G1 FRAME ASSY.
3120-00-662-0692 A14435G1 SLEEVE
5310-00-775-5173 A14434G1 NUT
B50074-G4-6 WIRE
B50074-G6-3 WIRE
4720-01-072-3373 A52789G4 HOSE
4730-00-482-5921 A53185G1 CLAMP
4710-00-903-2761 A52857G1 TUBE ASSY.
4730-00-460-6725 A14140 PLUG,PIPE
4730-01-165-0555 A14140-G1 PLUG,PIPE
A54323-G2 NOZZLE ASSY.
A54323G2 NOZZLE ASSY.
2915-00-013-9925 C52846G1 VALVE ASSY.
C52846-G1 VALVE ASSY.
52846G1 VALVE ASSY.
52846-G1 VALVE ASSY.
4730-00-319-0454 A14141 TEE
A8672310 TEE
8672310 TEE
4730-01-308-7173 M16000-3 ADAPTER
4810-00-968-7786 8737695 VALVE ASSY.
C52847-G1 VALVE ASSY.
52847G1 VALVE ASSY.
52847-G1 VALVE ASSY.
4540-00-968-7782 8737697 HEATING ELEMENT
52850G1 HEATING ELEMENT
2940-01-127-6316 A52850G1 ELEMENT ASSY.
A52850-G1 ELEMENT ASSY.
5310-01-027-1353 M30002-83 NUT
30002-83 NUT
B50526-G6-5 WIRE
A4843 INSULATOR
A-54699-G1 ELEMENT
A54699-G1 ELEMENT
A54699G1 ELEMENT
4810-00-818-4451 8672291 VALVE,REGULATOR
C52848G1 VALVE,REGULATOR
C13189 VALVE,REGULATOR
52848G1 VALVE,REGULATOR
52848-G1 VALVE,REGULATOR
2590-00-941-8680 8737698 THERMOSTAT ASSY.
52876G1 THERMOSTAT ASSY.
52876-G1 THERMOSTAT ASSY.
B52876-G1 THERMOSTAT ASSY.
B52876G1 THERMOSTAT ASSY.
B50526-G6-3 WIRE
B50526-G8-5 WIRE
A52875-G1 THERMOSTAT
A52875G1 THERMOSTAT
52875-G1 THERMOSTAT
52875G1 THERMOSTAT
4730-00-111-2501 A1523 NIPPLE
4730-00-186-7797 7537464 NIPPLE
AN911-1 NIPPLE
472A44 NIPPLE
B54298-G1-1 RESERVOIR
B54298G1-1 RESERVOIR
54298-G1-1 RESERVOIR
54298G1-1 RESERVOIR
2540-01-013-7634 A54300G1 ELEMENT ASSY.
A54300-G1 ELEMENT ASSY.
54300G1 ELEMENT ASSY.
54300-G1 ELEMENT ASSY.
4540-00-494-9503 54300G1 HEATING ELEMENT
B50074-G11-6 WIRE
5945-00-968-7785 8737699 RELAY,THERMAL
  52877-G1 RELAY,THERMAL
  R0016008RB RELAY,THERMAL
  R0016008RC RELAY,THERMAL
  6008R RELAY,THERMAL
5945-01-226-5254 B52877-G1 RELAY,IGNITER
5945-01-129-0264 B52877G1 RELAY,IGNITER
2540-00-893-5458 8737694-1 RELAY
B52843G2 RELAY
B52843-G2 RELAY
52843G2 RELAY
52843-G2 RELAY
5999-00-941-8679 8737694 RELAY
52843G1 RELAY
52843-G1 RELAY
B52843G1 RELAY
B52843-G1 RELAY
5945-00-864-0284 B53086G3 RELAY
B53086-G3 RELAY
X41329 RELAY
50386G3 RELAY
50386-G3 RELAY
B50073-G11 WIRE
B50073-G10 WIRE
B50526-G12-1 WIRE
B50074-G6-8 WIRE
5945-00-055-2813 8737832 RELAY
8337832 RELAY
52880G1 RELAY
52880-G1 RELAY
B52880G1 RELAY
1115816 RELAY
B50526-G11-7 WIRE
B50526-G13-4 WIRE
B50526-G14-2 WIRE
5340-01-280-3239 C54508-G1-1 BRACKET
C54508G1-1 BRACKET
54508-G1-1 BRACKET
54508G1-1 BRACKET
6680-00-443-9839 B52845G1 THERMOSTAT
B52845-G1 THERMOSTAT
52845G1 THERMOSTAT
52845-G1 THERMOSTAT
B50526-G11-1 WIRE
B50526-G12-7 WIRE
5325-00-134-4025 M25000-21 GROMMET
5930-00-968-7784 8737691 SWITCH,THERMOSTATIC
52576G1 SWITCH,THERMOSTATIC
5930-01-226-5263 A52576-G1 SWITCH,THERMOSTATIC
A52576G1 SWITCH,THERMOSTATIC
4211952 SWITCH,THERMOSTATIC
A52577-G1-1 RETAINER
2920-01-287-1885 B50553-G11-5 WIRE
B50553G11-5 WIRE
5325-00-866-3650 B50035-G2 GROMMET
B50035G2 GROMMET
50035G2 GROMMET
50035-G2 GROMMET
5340-00-482-5920 A50805G2-3 BUTTON,PLUG
A50805-G2-3 BUTTON,PLUG
50805G2-3 BUTTON,PLUG
50805-G2-3 BUTTON,PLUG
5340-01-287-1853 C52836-G1-1 COVER,ACCESS
C52836G1-1 COVER,ACCESS
52836-G1-1 COVER,ACCESS
52836G1-1 COVER,ACCESS
2540-00-127-5337 C52838G1-1 ADAPTER ASSY.
C52838-G1-1 ADAPTER ASSY.
C52838G3-1 ADAPTER ASSY.
C52838-G3-1 ADAPTER ASSY.
C52832-G1-1 CASING ASSY.
C52832G1-1 CASING ASSY.
52832-G1-1 CASING ASSY.
52832G1-1 CASING ASSY.
9905-01-287-1709 C13693-G54 PLATE
1680-01-296-4101 C52833-G1-1 CASING ASSY.
C52833G1-1 CASING ASSY.
52833G1-1 CASING ASSY.
2540-00-482-5922 B50035G4 GROMMET
B50035-G4 GROMMET
5325-00-543-2902 50035G4 GROMMET
50035-G4 GROMMET
MS35489-134 GROMMET
7402601 GROMMET
2540-00-891-1133 C52831G1 BLOWER ASSY.
52831-G1 BLOWER ASSY.
52831G1 BLOWER ASSY.
C52831-G1 BLOWER ASSY.
5340-00-587-2664 A50779G1 CLAMP,LOOP
A50779-G1 CLAMP,LOOP
5340-00-222-8562 8805804 CLAMP,LOOP
50779G1 CLAMP,LOOP
50779-G1 CLAMP,LOOP
6722994 CLAMP,LOOP
5342-01-027-1241 M37001-45 CLAMP
M30002-43 CLAMP
5905-00-402-7698 11601798 RESISTOR,FIXED
B54178G2 RESISTOR,FIXED
54178G2 RESISTOR,FIXED
54178-G2 RESISTOR,FIXED
B54178-G2 RESISTOR,FIXED
4140-00-105-2744 B50771G1-1 FAN,CIRCULATING
B50771-G1-1 FAN,CIRCULATING
50771-G1-1 FAN,CIRCULATING
C52866-G1-1 SHELL ASSY.
C52866G1-1 SHELL ASSY.
52866-G1-1 SHELL ASSY.
52866G1-1 SHELL ASSY.
5365-01-287-1816 A60697-G1-1 SPACER
A60697G1-1 SPACER
60697-G1-1 SPACER
60697G1-1 SPACER
4140-00-812-5016 8375997 IMPELLER,FAN
B14658G1-1 IMPELLER,FAN
B14658-G1-1 IMPELLER,FAN
14658G1-1 IMPELLER,FAN
14658-G1-1 IMPELLER,FAN
C17686-G2-2 SUPPORT ASSY.
C17686G2-2 SUPPORT ASSY.
17686-G2-2 SUPPORT ASSY.
17686G2-2 SUPPORT ASSY.
6105-00-557-2591 7973981 MOTOR,D.C.
C16971G2 MOTOR,D.C.
16971G2 MOTOR,D.C.
16971-G2 MOTOR,D.C.
C16971-G2 MOTOR,D.C.
5342-01-037-7049 11640551 BRACKET
A54180G1 BRACKET
54180-G1 BRACKET
54180G1 BRACKET
2540-00-933-1108 11601789 ELEMENT ASSY.
A52827G1 ELEMENT ASSY.
52827G1 ELEMENT ASSY.
52827-G1 ELEMENT ASSY.
A52827-G1 ELEMENT ASSY.
4540-00-456-1575 11640296 ELEMENT ASSY.
B54461-G1 ELEMENT ASSY.
B54461G1 ELEMENT ASSY.
B54461-G2 ELEMENT ASSY.
B54461G2 ELEMENT ASSY.
54461-G1 ELEMENT ASSY.
54461G1 ELEMENT ASSY.
54461-G2 ELEMENT ASSY.
54461G2 ELEMENT ASSY.
5325-00-059-5767 A52364G1 GROMMET
A52364-G1 GROMMET
52364G1 GROMMET
52364-G1 GROMMET
2540-00-994-0983 11640552 PLATE ASSY.
B52820G1 PLATE ASSY.
B52820-G1 PLATE ASSY.
52820-G1 PLATE ASSY.
52820G1 PLATE ASSY.
B52820G2 PLATE ASSY.
B52820-G2 PLATE ASSY.
52820-G2 PLATE ASSY.
52820G2 PLATE ASSY.
5330-00-133-6985 A52819G1 SEAL
A52819-G1 SEAL
52819G1 SEAL
52819-G1 SEAL
2815-01-287-1882 D52812-G1-1 CHAMBER ASSY.
D52812G1-1 CHAMBER ASSY.
2540-00-738-6071 D52812G1 CHAMBER ASSY.
D52812-G1 CHAMBER ASSY.
52812-G1-1 CHAMBER ASSY.
52812G1-1 CHAMBER ASSY.
52812-G1 CHAMBER ASSY.
52812G1 CHAMBER ASSY.
5325-00-057-7048 M25000-5 GROMMET
5330-00-127-5327 A52342G1 GASKET
A52342-G1 GASKET
52342G1 GASKET
52342-G1 GASKET
2540-01-164-5893 C54932-G1-1 COVER ASSY.
C54932G1-1 COVER ASSY.
54932-G1-1 COVER ASSY.
54932G1-1 COVER ASSY.
4520-00-567-1886 A18167G2 NOZZLE ASSY.
A18167-G2 NOZZLE ASSY.
18167-G2 NOZZLE ASSY.
18167G2 NOZZLE ASSY.
4720-00-912-3092 015-00003-28 HOSE
6110-01-165-0499 B55304-G1 VOLTAGE REGULATOR
6110-01-167-7252 11669843 VOLTAGE REGULATOR
6110-01-164-9434 55304-G1 VOLTAGE REGULATOR
55304G1 VOLTAGE REGULATOR
B54934-G1 VOLTAGE REGULATOR
B54934G1 VOLTAGE REGULATOR
54934-G1 VOLTAGE REGULATOR
54934G1 VOLTAGE REGULATOR
B55304 VOLTAGE REGULATOR
55458-G1 VOLTAGE REGULATOR
55458G1 VOLTAGE REGULATOR
B55458-G1 VOLTAGE REGULATOR
B55458G1 VOLTAGE REGULATOR
5961-00-274-2404 2N6286 TRANSISTOR
5910-01-440-8395 A55455-G1 CAPACITOR,FIXED
A55455G1 CAPACITOR,FIXED
55455-G1 CAPACITOR,FIXED
55455G1 CAPACITOR,FIXED
B543302G1 RESERVOIR ASSY.
2540-00-121-0505 11621402 RESERVOIR ASSY.
B54302G1 RESERVOIR ASSY.
B54302-G1 RESERVOIR ASSY.
54302G1 RESERVOIR ASSY.
54302-G1 RESERVOIR ASSY.
4730-00-288-9928 68F1-8 ADAPTER
MS39169-11 ADAPTER
2540-01-268-8908 C54823-G1-1 HOUSING
C54823G1-1 HOUSING
54823-G1-1 HOUSING
54823G1-1 HOUSING
052833-G1-1 HOUSING
052833G1-1 HOUSING
2990-01-287-1995 C52830-G3-1 ADAPTER
C52830G3-1 ADAPTER
52830-G3-1 ADAPTER
52830G3-1 ADAPTER
2540-01-268-8907 C54821-G1-1 HOUSING
C54821G1-1 HOUSING
54821-G1-1 HOUSING
54821G1-1 HOUSING
2540-01-166-6374 B55075-G1 SEAL
B55075G1 SEAL
55075-G1 SEAL
55075G1 SEAL
2540-01-167-4294 B55101-G1 PLATE
B55101G1 PLATE
55101-G1 PLATE
55101G1 PLATE
2540-01-167-7248 11669846 IGNITER ASSY.
2540-01-115-1805 54733G1 IGNITOR ASSY.
4520-01-225-7956 A54733-G1 IGNITER
2920-01-129-2516 A52562G1 IGNITER

2540-00-941-8681 8737690 IGNITER
4520-01-257-8488 A55302-G1 IGNITER
A55302G1 IGNITER
55302-G1 IGNITER
55302G1 IGNITER
A55302 IGNITER
A55302-G2 IGNITER
A55302G2 IGNITER
C52831-G2 BLOWER ASSY.
C52831G2 BLOWER ASSY.
52831-G2 BLOWER ASSY.
52831G2 BLOWER ASSY.
2540012264949
D54200-G1
D54200G1
4211951
