GRIP ASSEMBLY,CONTROLLER
0,00 USD
USED ON M109A6 ONLY!
1090-01-385-5420
1090013855420
12927680

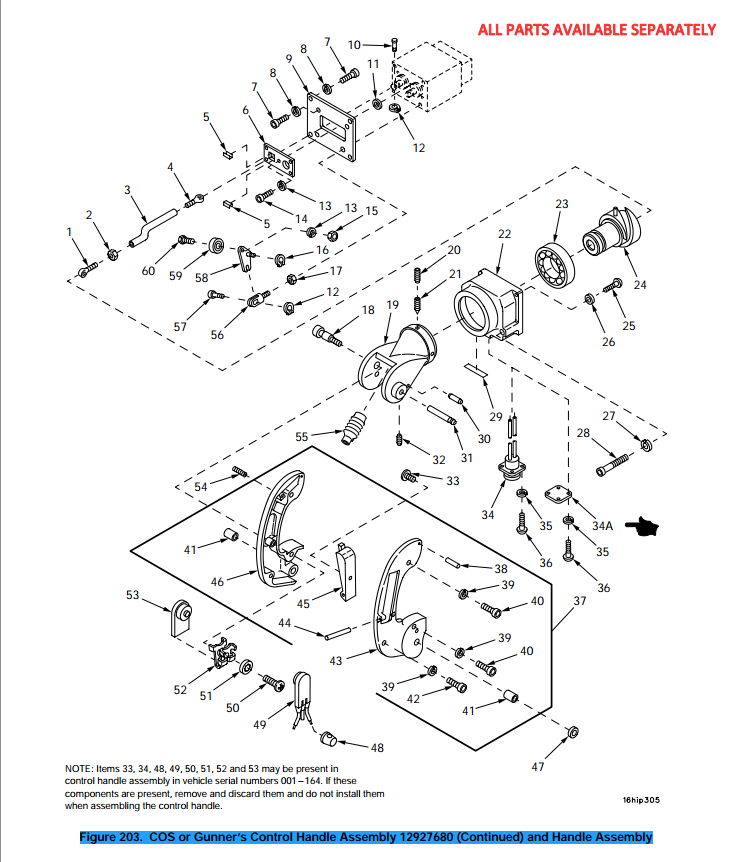

ALL PARTS OF THIS GUNNER'S CONTROL HANDLE ASSEMBLY ARE AVAILABLE SEPARATELY;
5306-01-351-7537 | 5306013517537 |
![]()
|
![]()
|
||
3040-01-070-3180 | 3040010703180 | 11635975 | CONNECTING LINK,RIGID | ||
5306-01-077-8631 | 5306010778631 | 11635958 | BOLT,EYE | ||
2520-00-179-5456 | 2520001795456 | 11635966 | GUIDE,GUN CONTROL | ||
2520-00-198-7550 | 2520001987550 | 11635980 | COVER PLATE,GUN CONTROL | ||
2520-00-198-7547 | 2520001987547 | 11635982 | PLATE,GUN CONTROL | ||
5315-00-176-6710 | 5315001766710 | 7998742 | PIN,GROOVED,HEADED | ||
6150-00-179-7159 | 6150001797159 | 11635973 | LEAD ASSY.,ELECTRICAL | ||
3040-00-179-5459 | 3040001795459 | 11635961 | SHAFT,STRAIGHT | ||
5315-01-074-7578 | 5315010747578 | 11635967 | PIN,STRAIGHT,HEADLESS | ||
5305-00-181-0867 | 5305001810867 | 11640164 | SETSCREW | ||
5340-01-591-0030 | 5340015910030 | 11635989 | BRACKET,MOUNTING | ||
5305-01-591-0033 | 5305015910033 | 11635972 | SCREW,SHOULDER | ||
5340-01-482-1424 | 5340014821424 | 11635964-1 | BOOT,DUST AND MOISTURE | ||
5365-00-799-1034 | 5365007991034 | 10893988 | SHIM | ||
2520-00-888-3715 | 2520008883715 | 11635988 | HANDLE,GUNNER'S CONTROL | ||
5315-00-176-6709 | 5315001766709 | 7973780 | PIN,STRAIGHT,HEADLESS | ||
5315-00-812-6664 | 5315008126664 | 7973783 | PIN,STRAIGHT,HEADLESS | ||
3120-00-859-5971 | 3120008595971 | 10887012 | BUSHING,SLEEVE | ||
2520-01-139-5148 | 2520011395148 | 11635992 | HANDLE,LEFT HALF,GUN | ||
2520-01-139-5149 | 2520011395149 | 11636175 | HANDLE,RIGHT HALF,GUN | ||
5340-00-442-5884 | 5340004425884 | 10893999 | PLUNGER,DETENT | ||
5310-00-219-8200 | 5310002198200 | 8346053 | WASHER,LOCK | ||
5940-01-417-3181 | 5940014173181 | 9399174 | SPLICE,CONDUCTOR | ||
5930-01-074-9689 | 5930010749689 | 11636184 | SWITCH,SENSITIVE | ||
5365-00-198-7548 | 5365001987548 | 11635974 | SPACER | ||
5340-00-980-1738 | 5340009801738 | 10924217 | CLIP,SPRING TENSION | ||
5340-00-178-1449 | 5340001781449 | 7998726 | CLEVIS,ROD END | ||
5315-00-176-6712 | 5315001766712 | 7998735 | PIN,GROOVED,HEADED | ||
3040-00-123-0191 | 3040001230191 | 11635960 | LEVER,REMOTE CONTROL | ||
3110-00-143-3001 | 3110001433001 | 7973875 | BEARING,BALL | ||
5306-00-080-5426 | 5306000805426 | 7383547 | BOLT,MACHINE | ||
1015-00-490-0766 | 1015004900766 | 11635977 | HOUSING ASSY.,GUN CONTROL | ||
5360-00-453-6208 | 5360004536208 | 7973612 | SPRING,HELICAL | ||
3110-00-156-5455 | 3110001565455 | 713512 | BEARING,BALL,ANNULAR | ||
3040-00-490-0767 | 3040004900767 | 11635963 | CAM,CONTROL ASSY. | ||
5310-00-179-5466 | 5310001795466 | 7973747 | WASHER,FLAT | ||
5360-00-179-5462 | 5360001795462 | 7973610 | SPRING,HELICAL,COMPRESSION | ||
5340-00-179-5463 | 5340001795463 | 7973746 | SEAT,HELICAL COMP.,SPRING | ||
4820-01-412-3130 | 4820014123130 | 8712257-1 | SLIDE AND SLEEVE ASSEMBLY | ||
4820-01-412-3134 | 4820014123134 | 8712256-1 | SLIDE AND SLEEVE ASSEMBLY | ||
5325-00-951-6973 | 5325009516973 | 8712258 | RING,RETAINING | ||
5365-00-006-2316 | 5365000062316 | 11640162 | PLUG,MACHINE THREAD | ||
11635991 | HOUSING,GUN CONTROL | ||||
11635985 | CAM,CONTROL | ||||
11635981 | COVER,VALVE | ||||
11635990 | BODY | ||||
11635983 | SUPPORT |
